Cosmetic Patterns

Patterns are simply cosmetics that get applied to armor pieces.

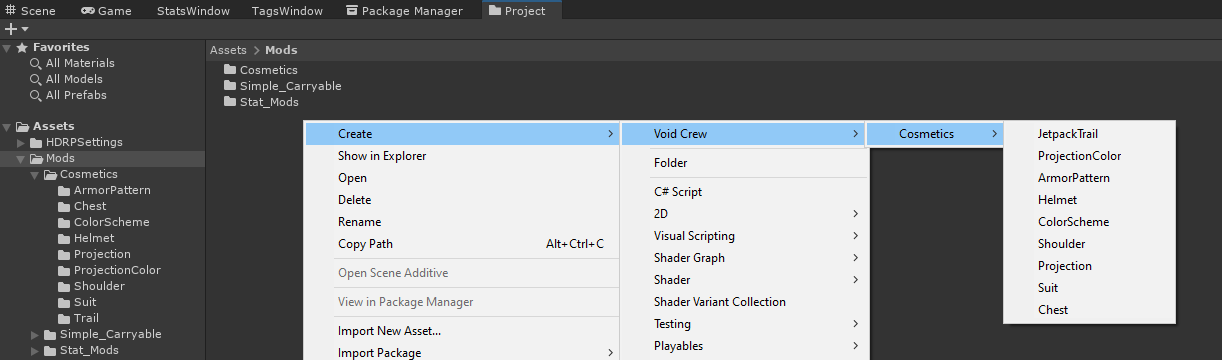

To create an armor color scheme or projection, right click in the project window, and in the menu go to Create > Void Crew > Cosmetics. Then select ArmorPattern.

CreateCustomCosmetics

This will create a new cosmetic scriptable object for the chosen type.

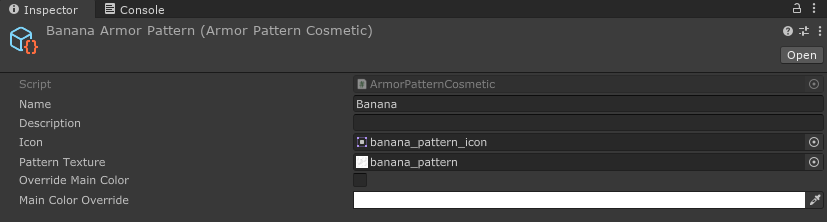

PatternExample

Pattern Texture
Patterns textures should be seamless and are recommended to have a resolution of at 512x512.

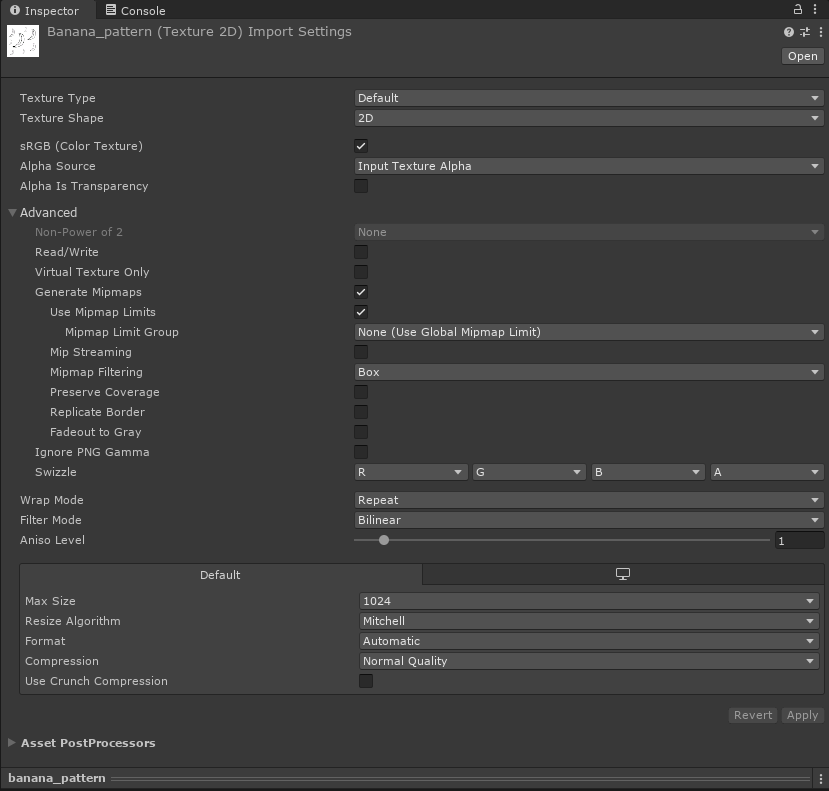

Remember to set the pattern’s wrap mode to Repeat so the texture will be tiled on the armor.

PatternExample

Important: Pattern texture needs to be texture type Default, unlike the icon which needs to be Sprite (2D and UI).

PatternExample

By default, they get applied to the parts of armor pieces that use the primary color of the picked color scheme.

PrimaryColor

Override Main Color
Patterns don’t necessarily have to be black and white, but unless a custom color override is picked, their colors are multiplied with the primary color of the armor. Which might lead to unexpected results.

If the pattern has a different main color, enable Override Main Color and specify the override color in Main Color Override.
